- For Lease Contact for pricing
- Property Type Industrial
- Property Size 259,111 SF
- Lot Size 5.95 Acre
- Building Class B
- Date Updated Sep 3, 2026
- HVAC None
Description

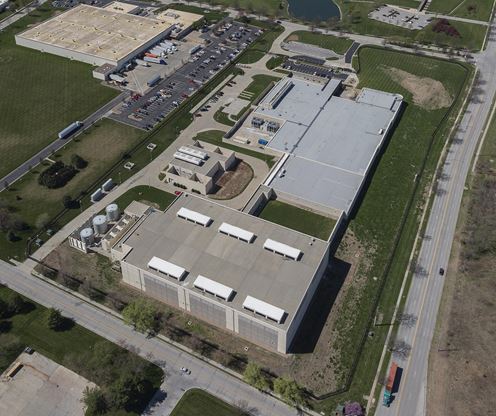

Ideally situated data center, located near the Kansas City International Airport.The 259,111 square foot Class A Data center and consists of two buildings that are designed for flexible data hall and density requirements. 259,111 square feet across two separate buildings are engineered to support flexible data hall configurations and varying density requirements. The initial phases are poised to deliver 18.8 MW of leasable power over the next 12 months from the available 26.6 MW of utility power. Future expansion of 60MW is feasible with a designated on-site substation over the next 30 months. This data center is a rare opportunity that offers abundant power with flex office space created for modern data center operation.
Highlights
- Building A is cooled by (4) 500 ton (Trane) centrifugal chillers.
- Building B is cooled by (4) York chillers at 2400 tons total.
- Each primary system is designed to support 2000kW of critical I.T. load. A single generator will support each system. Each engine generator shall consist of 3,333kVA.
- ELECTRICAL
- Fuel oil tanks double wall, 48-hour continuous operation at 100 percent rated power output
- M&E CONDITIONS
- MEDIUM VOLTAGE DISTRIBUTION CONDITIONS
- Ten (10) 500-ton ACC to be provided for the traditional lineups and Thirty-Six (36) 600-ton ACC to be provided.
- The cooling units will be concurrently maintainable with CCC 250kW & fan walls 550kW airside delivery to maintain 23.5F Delta T at rack level.
- The electrical system is designed in iso-redundant or distributed redundant configuration. Each block is designed to provide 2 MW of usable IT capacity.
- The system includes, but is not limited to, the Utility System, Generator System, the main distribution board, UPS System, transformation to 415V, and UPS output board. The system shall be concurrently maintainable and contain no single points of failure.
- The system is designed to accommodate two UPS modules sized at 1,100kW UPSs for a total of 2,000 kW output capacity.
- The system is designed to support Nickel Zinc batteries and provide 5 minutes of battery- backup at the end of life.
- Thermal chilled water storage consists of 114,000 gallons in building A and 110,000 gallons in building B. 205,000 gallons of underground water storage on site.
- Three (3) 25KV power feeds from diverse substations with switched configurations between each respective substation that power the facility
- Two existing parallel redundant UPS's systems are currently installed. Each UPS system is located in dedicated switchgear rooms
- UPS
True
1 Space Available
Kansas City Data Center Building A & B
Space Type
Industrial
Lease Rate
Contact for pricing
Total Space
259,111 SF
Divisible Space
259,111 - 259,111 SF
Available Date
Immediate
Lease Type
NNN
Renewal Option
Yes
Sublease
No
Contacts
Ryan Sullivan
Lincoln
Location
Located at 11155 North Airworld Drive, Kansas City, MO 64153, this property is part of the Kci & 2nd Creek neighborhood and Kansas City market.
